test0727

video video

Products Specification:

Application: Recessed-mounted, Surface-mounted, Pendant

SDCM: ＜3

Beam Angle: 24°, 38°, 60°

Power: 40W, 45W

CCT: 2700K, 3000K, 4000K, 5000K

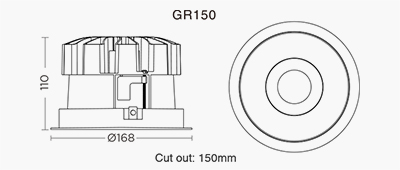

Line Drawing:

test0727

General Features:

Secondary Reflector

Frame Color

Galaxy Downlight

(40W-45W)

Galaxy led recessed light is designed to be well adapt to high ceiling applications，Except for classic white color，Glalaxy also support tunable white and CCT selectable with unparalleled quality light distribution.

Galaxy Downlight 20W-25W

General Lighting & Accent Lighting

Available in 24°, 38°, 60°, Galaxy can create more powerful and dramatic beam strengths with precise optics, thanks to it's super high efficient thermal management and high light efficiency 110lm/w.

Galaxy Downlight 20W-25W

UGR＜16, anti glare cob downlight

Galaxy led downlight was developed with the specifications of good glare control and high visual comfort with UGR＜16.

Galaxy Downlight 20W-25W

Magnetic Reflector

Installations (tool-free)

The magnetic design allow reflector to be swapped without positioning or any tool, allowing you to easily change how your spaces feel and perform with minimal labor. Multiple reflector colors to fit versatile design needs.

Galaxy Downlight 20W-25W

Excellent Thermal Management

Die-cast aluminum housing with smart ventilation design provides efficient heat transfer and proprietary thermal management system.

Galaxy Downlight 40W-45W

IP54 Waterproof

Galaxy with an extremely high IP rating IP54 are particularly suitable for the transitional areas between indoors and outdoors. In indoor areas where protection against moisture or dust is required, they ensure high-quality lighting even in harsh conditions.

Galaxy Downlight 40W-45W

High Ceiling Applications

With light output reaching 4,500 delivered lumens, Galaxy put long lasting, energy efficient, mercury-free high celling LED lighting options in play for shopping mall, airports, atriums, ballrooms, lobbies, and other spaces that require maximum lumen output.

Specs

Features
Specsheet
Accessories

-6 inch max 45W

-High lumen efficiency of 110lm/W

-Tunable white allow more flexible light adjustment to match the mood

-Low glare UGR<16 for visual comfort

-Magnetic reflector design enable tool-free replacement without trouble in positioning

-IP54 suitable for semi outdoor and wet areas

-Spring clip to be flexible with ceiling thickness from 1-30mm

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
GR150-24D	40W	900mA	3636lm	90+	2700K	24°
GR150-38D	40W	900mA	3587lm	90+	2700K	38°
GR150-60D	40W	900mA	3713lm	90+	2700K	60°
GR150-24D	45W	1000mA	4144lm	90+	2700K	24°
GR150-38D	45W	1000mA	4240lm	90+	2700K	38°
GR150-60D	45W	1000mA	4256lm	90+	2700K	60°

None

How can we support you?

Galaxy Downlight System

Galaxy ceiling light is a family series consist of 3 sizes (4in, 5in, 6in) that gives wattage from 20W to 50W, fit perfectly Intospaces with cillng from 5m to 12m. And comes with 3 mounting styles: recessed, surface-mount and pendant to be versatile enough for different needs, whilst keep uniform impression for the space.
