DELLA Downlight 8W-10W

Products Specification:

Application: Recessed-mounted

SDCM: ＜3

Beam Angle: 15°, 24°, 36°, 50°

Power: 8W, 10W

CCT: 2700K, 3000K, 3500K, 4000K, 1800K-3000K, 2700K-6500K

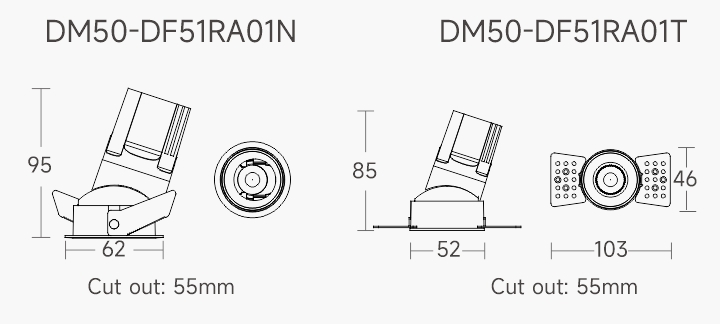

Line Drawing:

DELLA Downlight 8W-10W

General Features:

Accessories

DELLA Mini Downlight 5W-8W

Secondary Reflector

DELLA

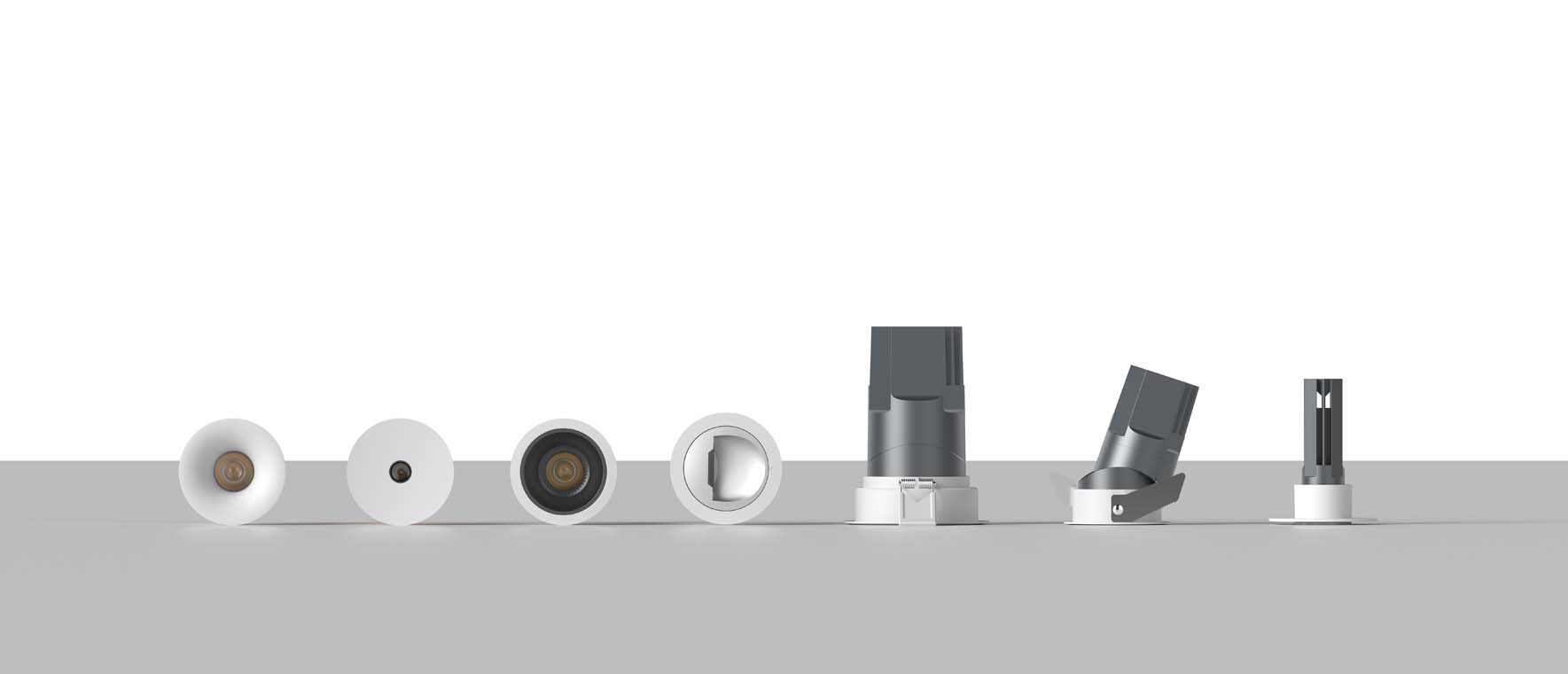

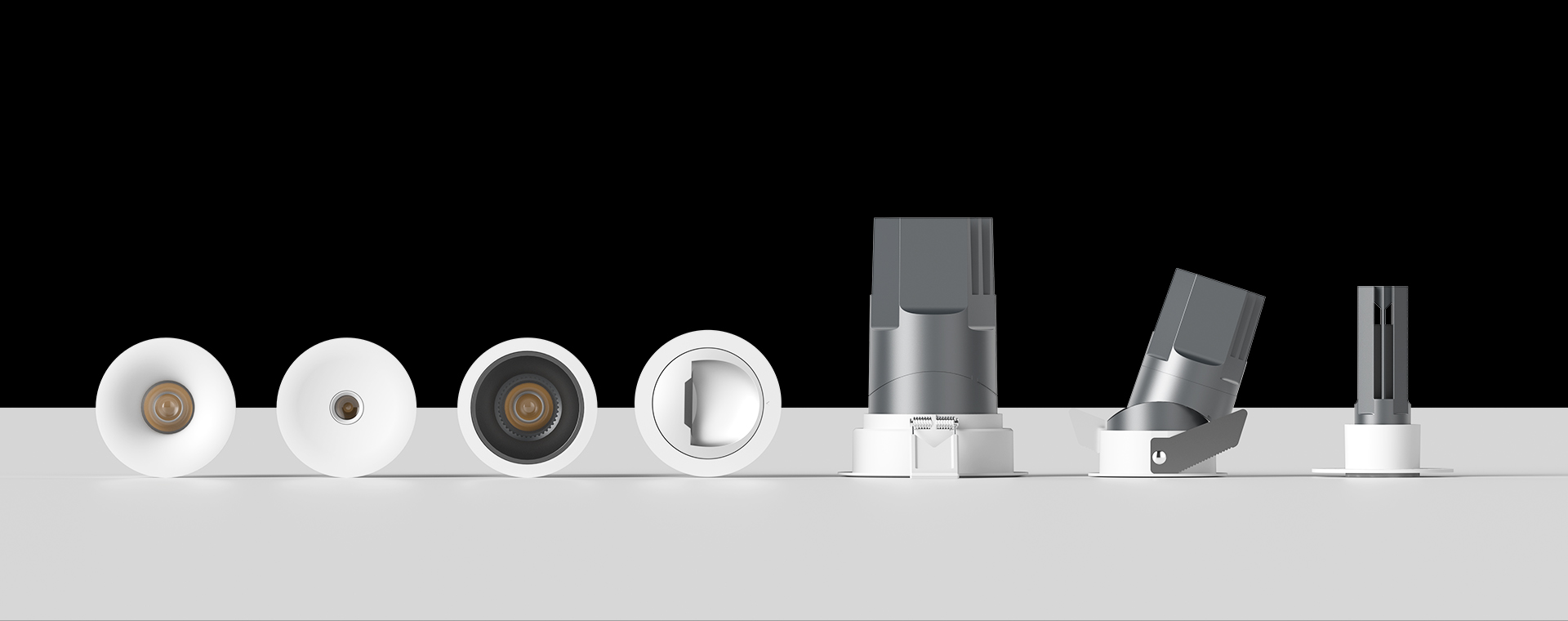

DELLA Downlight Series: a fusion of sleek design and advanced technology. Categorized into 3 version of Designer, Premium, and Standard. With sizes from 1.25” to 4”, its versatility is matched by optical ranges from a sharp 15° to a wide 50°, supplemented by wall-washing and zoom functions. DELLA offers a selection of bezels, including trim or trimless, squares, and minimalist small openings, it can be fixed or adjustable with clear measurement.

With its modular structure for flexibility, superior light quality and lower UGR for visual comfort, DELLA exemplifies modern downlight excellence.

DELLA Mini Downlight 5W-8W

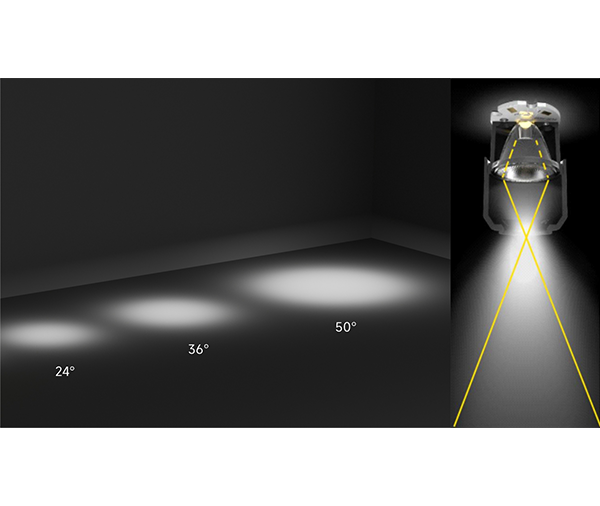

4 Beam Angles

Available in 15°, 24°, 36° and 50° beam angles, DELLA downlight allows enough flexibility for you to choose from accent lighting, flood lighting or general lighting no matter for small objects or big walls.

DELLA Downlight 8W-10W

Full Light Distribution

The adjustment is always at pivot of light center to avoid being blocked for full distribution.

DELLA Downlight 8W-10W

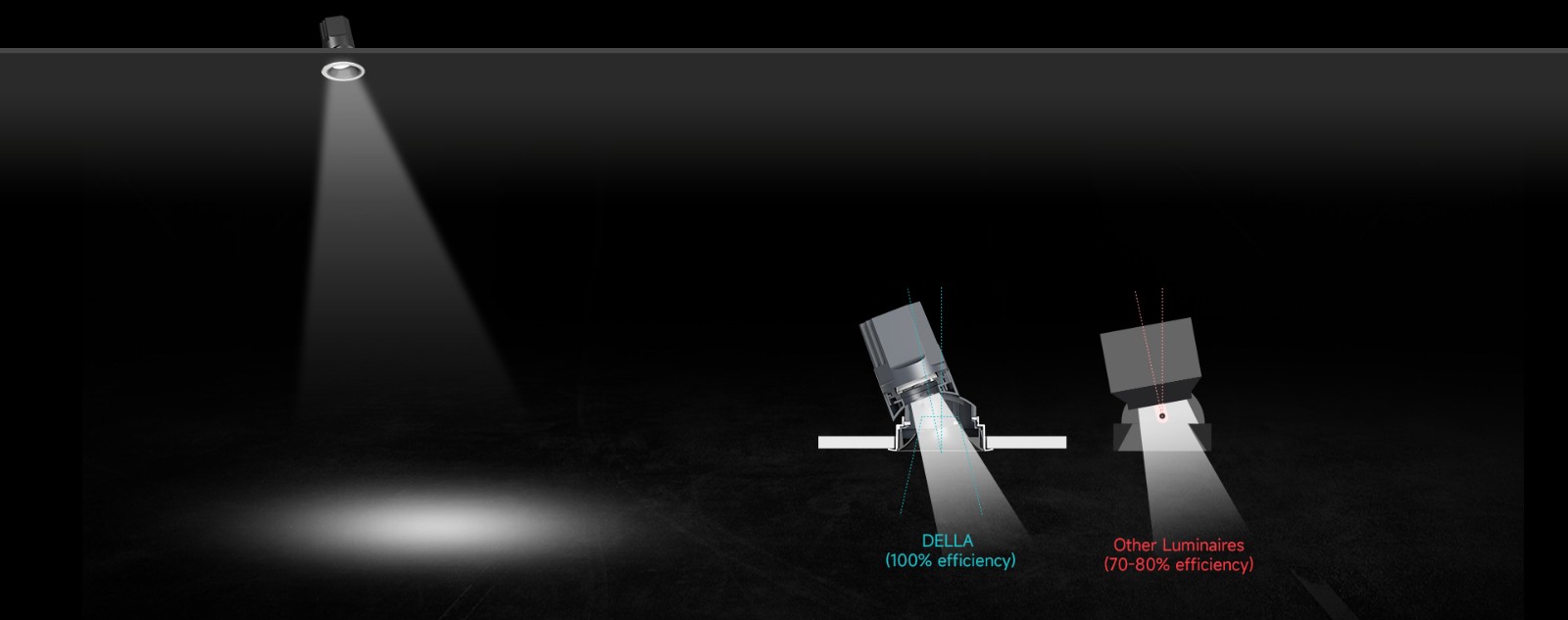

Fully Enclosed Design

To ensure highest efficiency of distribution without light leakage even at tilt.

DELLA Downlight 8W-10W

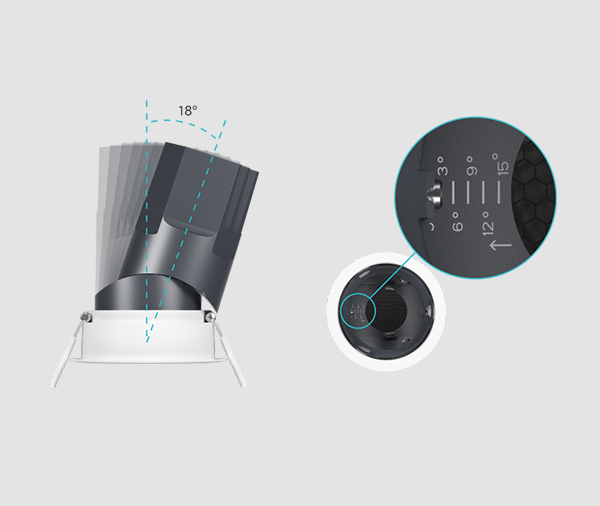

Precise Tiltable Adjustment

The light is precisly tiltable with scale and lock point.

DELLA Downlight 8W-10W

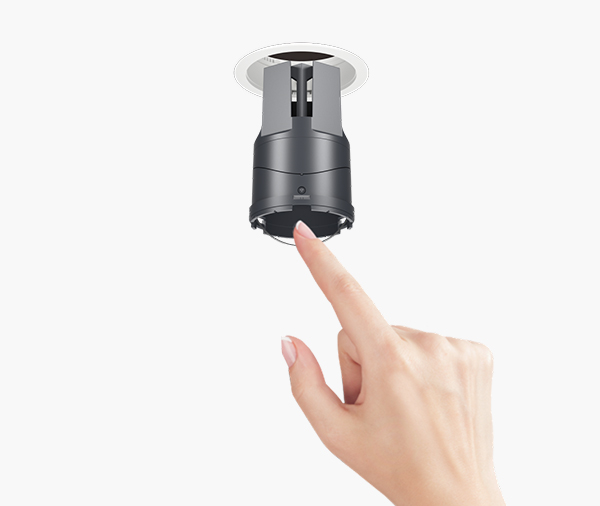

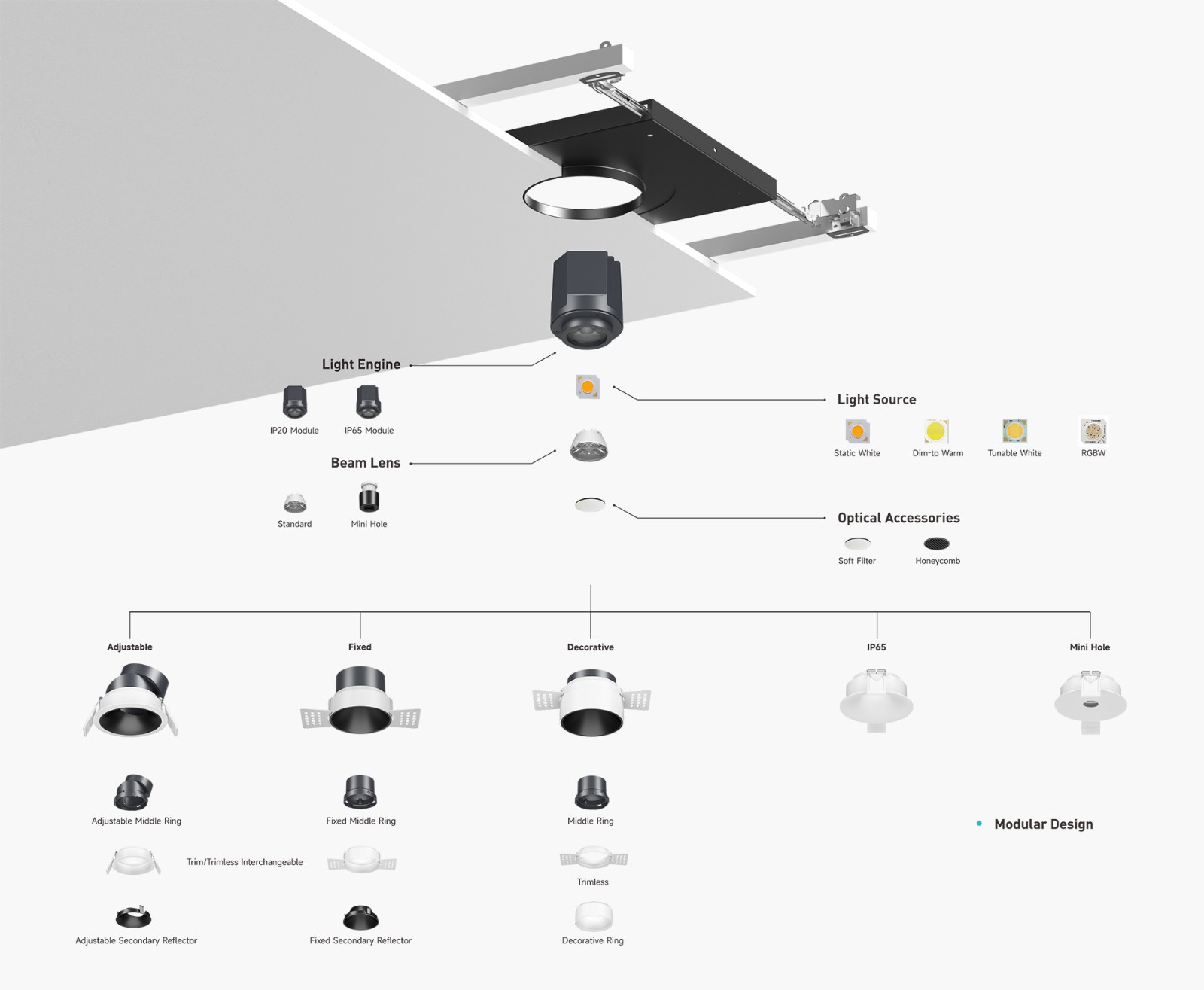

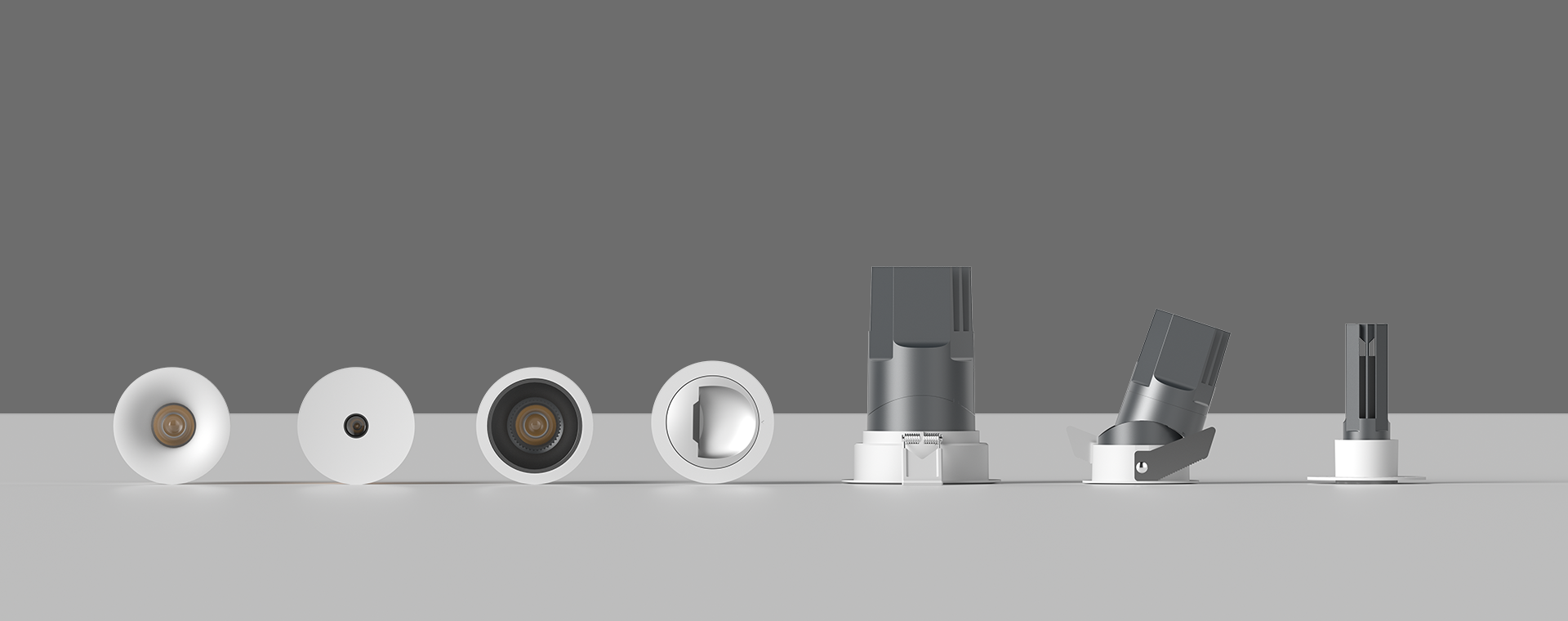

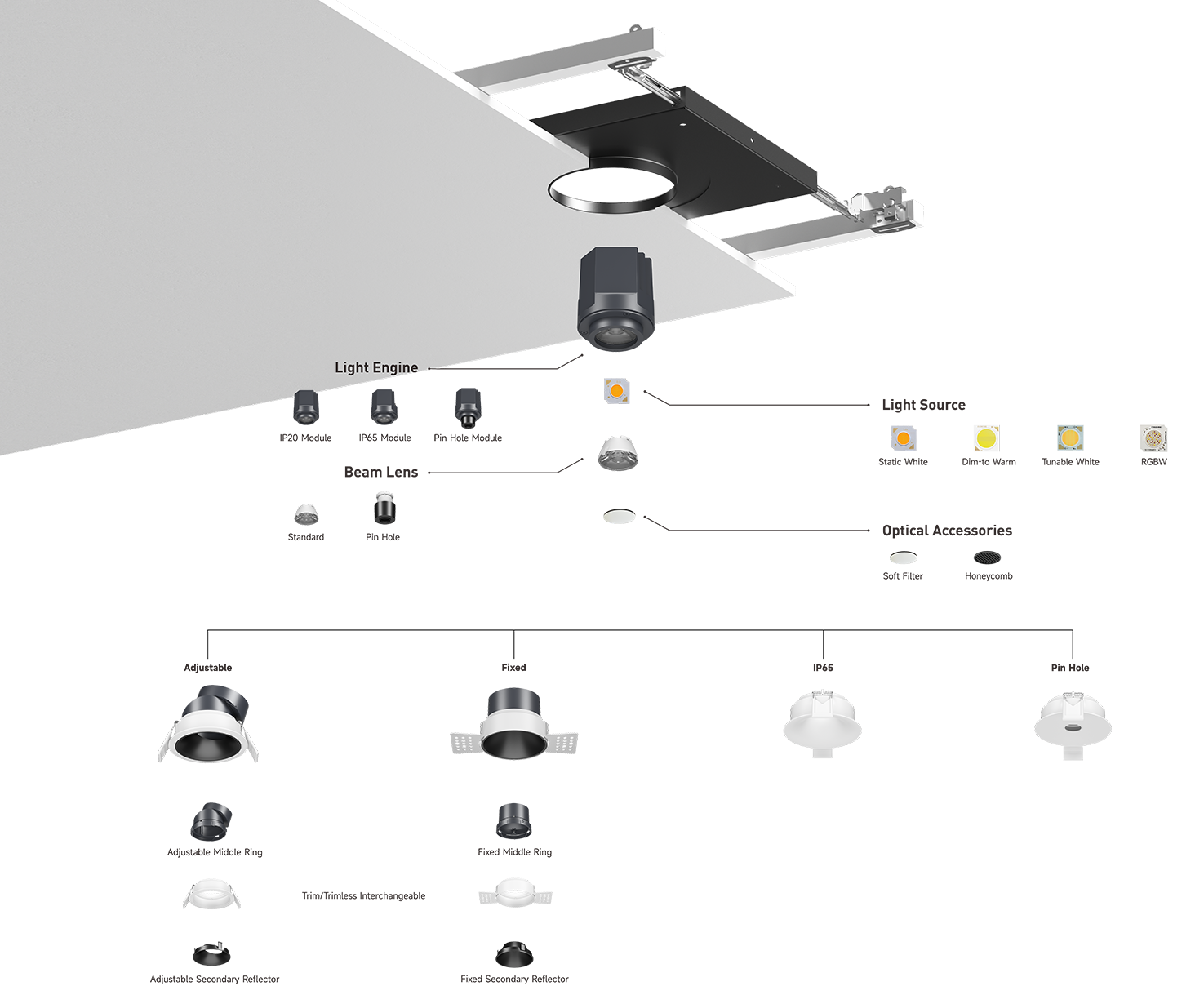

Super Modular Design

Any parts could be replaced manually without tools

DELLA Downlight 8W-10W

Versatile Optical Accessories

Humanized modular design ensures fast delivery and low stock mangement cost.

DELLA Downlight 8W-10W

Precise Light Control

Four kinds of facial rings can be selected to create different light spot atmosphereand outstanding light shape. Optional oblique / direct / ellipticalsmall round hole.

DELLA Downlight 8W-10W

Wall wash and 15°, 24°, 36°, 50° Beam lens + Optical accessries

Specs

Features
Specsheet
Accessories

-Excellent ventilation design enable smaller size and bigger power.

-Newest tiny 2'' for max 10W.

-Locking point and marker for precise adjustment.

-Ultra low glare UGR<6 for visual comfort.

-Seamless configuration without light leak.

-Complete lighting solutions include wall washer, pinhole, narrow to flood beam.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
DM055-DF51RA01	8W	180mA	524lm	90+	3000K	15°
DM055-DF51RA01	8W	180mA	517 lm	90+	3000K	24°
DM055-DF51RA01	8W	180mA	520 lm	90+	3000K	36°
DM055-DF51RA01	8W	180mA	485 lm	90+	3000K	50°
DM055-DF51RA01	10W	250mA	718 lm	90+	3000K	15°
DM055-DF51RA01	10W	250mA	716 lm	90+	3000K	24°
DM055-DF51RA01	10W	250mA	723 lm	90+	3000K	36°
DM055-DF51RA01	10W	250mA	666 lm	90+	3000K	50°

Image	Description	Model NO#	Available for
	Honeycomb	DM055-H	DM055
	Square Lens	DM055-S	DM055
	Polarized Lens	DM055-P	DM055
	Soft Lens	DM055-FSO	DM055
	Transparent Lens	DM055-T	DM055
