Home / Products / Downlight / DELLA Mini Downlight 5W-8W

Overview Specs

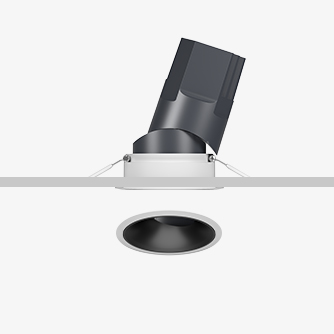

DELLA Mini Downlight 5W-8W

Products Specification:

Application: Recessed-mounted

SDCM: ＜3

Beam Angle: 15°, 24°, 36°, 50°

Power: 5W, 8W

CCT: 2700K, 3000K, 3500K, 4000K, 2700K-6500K(5W)

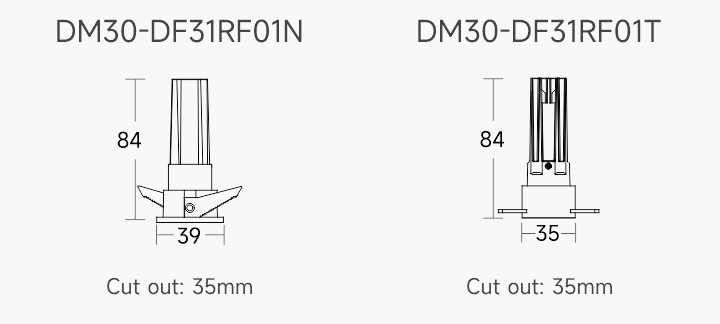

Line Drawing:

DELLA Mini Downlight 5W-8W

General Features:

Accessories

DELLA Mini Downlight 5W-8W

Secondary Reflector

DELLA

DELLA Downlight Series: a fusion of sleek design and advanced technology. Categorized into 3 version of Designer, Premium, and Standard. With sizes from 1.25” to 4”, its versatility is matched by optical ranges from a sharp 15° to a wide 50°, supplemented by wall-washing and zoom functions. DELLA offers a selection of bezels, including trim or trimless, squares, and minimalist small openings, it can be fixed or adjustable with clear measurement.

With its modular structure for flexibility, superior light quality and lower UGR for visual comfort, DELLA exemplifies modern downlight excellence.

DELLA Mini Downlight 5W-8W

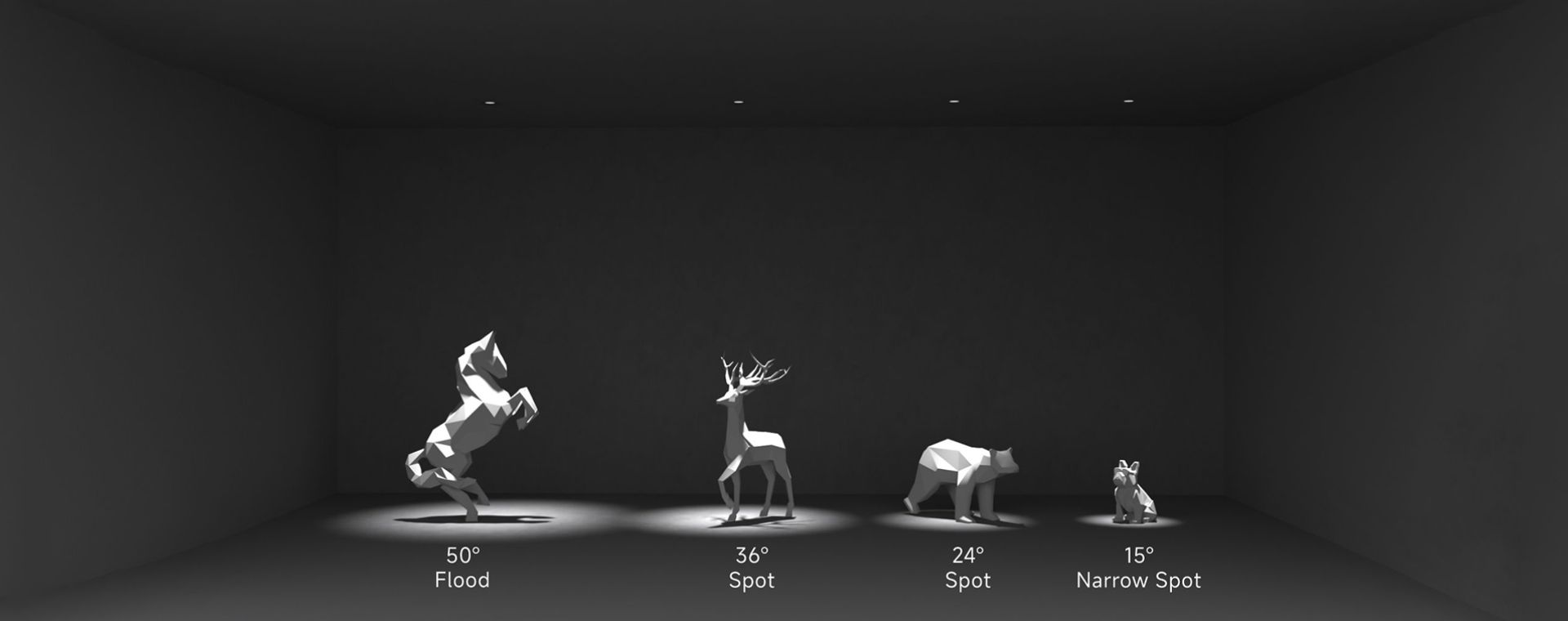

4 Beam Angles

Available in 15°, 24°, 36° and 50° beam angles, DELLA downlight allows enough flexibility for you to choose from accent lighting, flood lighting or general lighting no matter for small objects or big walls.

DELLA Mini Downlight 5W-8W

Small Size Big Power

Mini in size but powerful in wattage thanks to it's high efficient convective heat dissipation design.

DELLA Mini Downlight 5W-8W

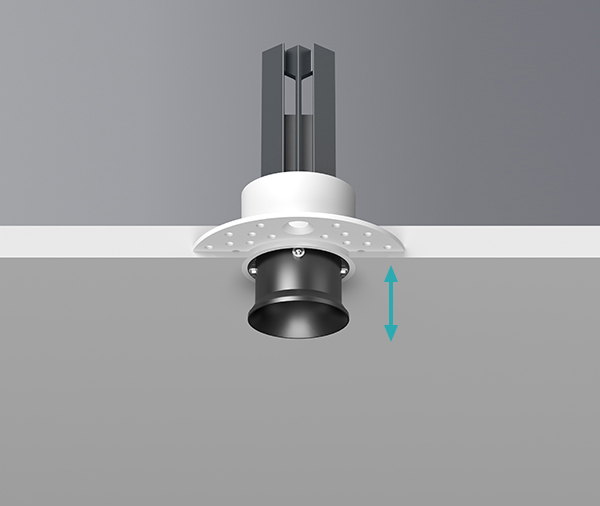

Pull Ring Design (Foldable)

No more hard work, pull out led engine in second.

Specs

Features
Specsheet
Accessories

-Excellent ventilation design enable smaller size and bigger power.

-Newest tiny 1.25'' for max 8W.

-Locking point and marker for precise adjustment.

-Ultra low glare UGR<6 for visual comfort.

-Seamless configuration without light leak.

-Complete lighting solutions include wall washer, pinhole, narrow to flood beam.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
DM035-DF31RA01	5W	120mA	309 lm	90+	3000K	15°
DM035-DF31RA01	5W	120mA	349 lm	90+	3000K	24°
DM035-DF31RA01	5W	120mA	316 lm	90+	3000K	36°
DM035-DF31RA01	5W	120mA	359 lm	90+	3000K	50°
DM035-DF31RA01	8W	180mA	290 lm	90+	3000K	15°
DM035-DF31RA01	8W	180mA	343 lm	90+	3000K	24°
DM035-DF31RA01	8W	180mA	268 lm	90+	3000K	36°
DM035-DF31RA01	8W	180mA	300 lm	90+	3000K	50°

Image	Description	Model NO#	Available for
	Honeycomb	DM035-H	DM035
	Square Lens	DM035-S	DM035
	Polarized Lens	DM035-P	DM035
	Soft Lens	DM035-FSO	DM035
	Transparent Lens	DM035-T	DM035
