ELLA-Commercial 5W-35W

ELLA-Commercial 5W-35W

Products Specification:

Application: Recessed-mounted

SDCM: <3

Beam Angle: 15°, 24°, 38°, 55°

Power: 5W, 8W, 10W, 15W, 20W, 25W, 30W, 35W

CCT: 2700K, 3000K, 4000K


Line Drawing:

ELLA-Commercial 5W-35W

General Features:

Accessories

AVA - Commercial MR16 Modular Downlight 5-15W

AVA - Commercial MR16 Modular Downlight 5-15W


ELLA-Commercial

ELLA-Commercial LED recessed downlight is well-received in a variety of settings including residential, hospitality, and especially commercial spaces for both its perfect lighting effects and flexible mounting ring options. Its super modular design, along with 3 types of round & square mounting rings, single & double head luminaire, 8 wattages and 2 cutouts, sweeps the market as soon as its first introduction. Honeycomb filter can be added to maximize visual comfort.





 ELLA-Hotel Round Adjustable 5W-35W

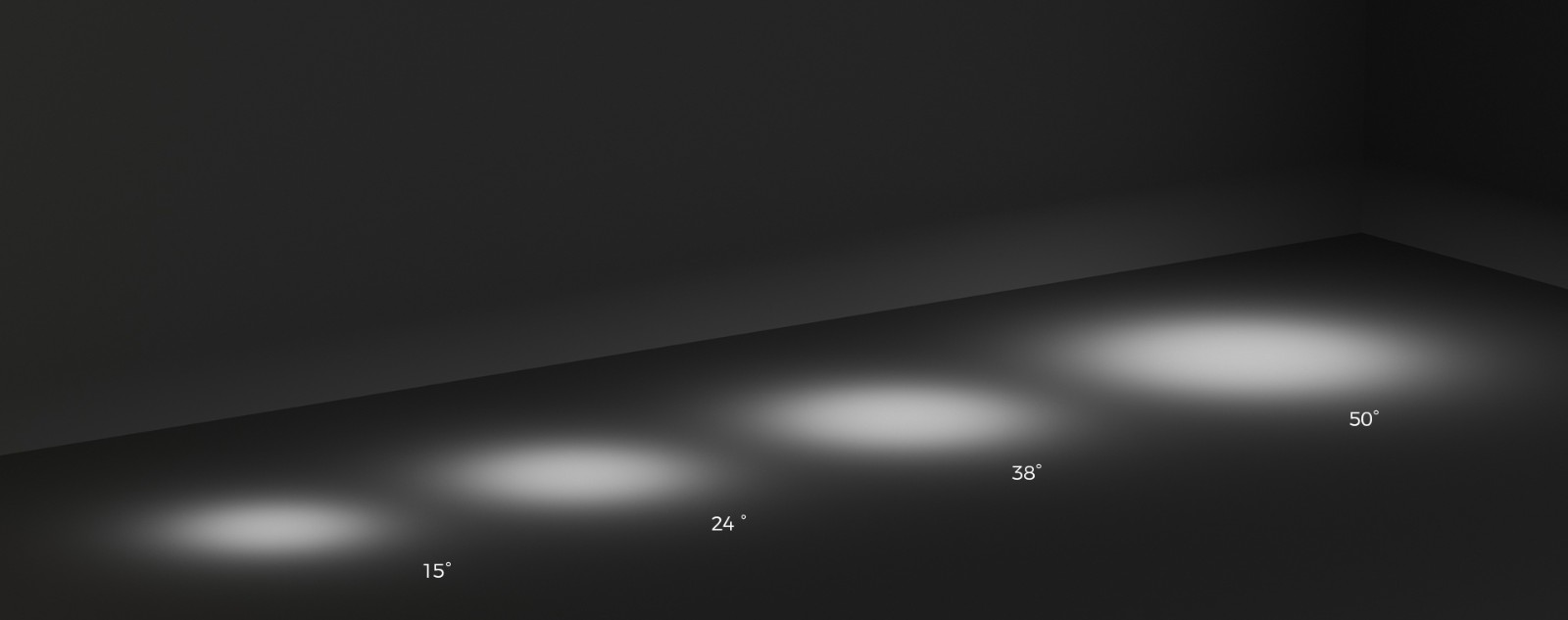

4 Beam Angles

Available in 15°, 24° , 38° and 55° beam angles, ELLA LED recessed downlight allows enough flexibility for you to choose from narrow beam on small objects requiring accent lighting to flood light on walls lacking general brightness. But no matter which angle is needed and where it is needed, one thing that remains the same is ELLA's high-level light quality and evenly blended light edge.


 ELLA-Commercial 5W-35W

Anti-glare Accessories

In order to push the anti-glare effect further to a new level, ELLA is designed to be compatible with either honeycomb or soft lens, so that UGR could be minimized.

ELLA cares about every user's eye health very much.

 ELLA-Commercial 5W-35W



30° Tiltable At Any Direction

In comparison to general tilt downlights that are only able to tilt in the same fixed direction, ELLA Commercial is not only equipped with 30° tile angle, but also 360° tilt direction, allowing the quality light to be shone on every spot without limit.

 ELLA-Commercial 5W-35W



Super Modular Luminaire

ELLA Residential series has made itself super modular from inside out. You can easily make a brand new luminaire by a quick and simple twist of the LED module + mounting ring combos: round & square, trim & trimless, fixed& adjustable. All these infinite possibilities will make the luminaire fit right into any commercial, hospitality, and especially residential settings. Therefore, no matter the demanding customer is expecting an LED recessed downlight solution for his sweet home, store, restaurant, high-end bathroom, or hotel, you can always say yes.


 ELLA-Commercial 5W-35W

Diverse Mounting Rings

ELLA Commercial LED recessed downlight does not provide these many mounting rings for a show of flexibility, but aims to set a standard of practicality. Various kinds of shapes- round, square, single and double – help customers find the right light for different projects.

Specs

-Elegant & compact in its style, versatile in its using.


-Precise light control, 15°, 24°, 38°, 55° beam lens options.


-Round & square mounting rings with tiltable 30° axis, also can be dual-head.


-Super modular design, replacing LED module, mounting ring, beam lens and anti-glare accessories without any needs for tools.


-IP20 is standard, IP44 is optional.


Order info.PowerLed CurrentLuminous
Flux(lm)
CRICCTBeam Angle
(°)
EM050-EF53RA01-15D5W120mA355 lm90+2700K15°
EM050-EF53RA01-24D5W120mA362 lm90+2700K24°
EM050-EF53RA01-38D5W120mA363 lm90+2700K38°
EM050-EF53RA01-55D5W120mA344 lm90+2700K55°
EM050-EF53RA01-15D8W180mA589 lm90+2700K15°
EM050-EF53RA01-24D8W180mA601 lm90+2700K24°
EM050-EF53RA01-38D8W180mA601 lm90+2700K38°
EM050-EF53RA01-55D8W180mA570 lm90+2700K55°
EM060-EF63RA01-15D15W350mA988 lm90+2700K15°
EM060-EF63RA01-24D15W350mA1067 lm90+2700K24°
EM060-EF63RA01-38D15W350mA1088 lm90+2700K38°
EM060-EF63RA01-55D15W350mA1036 lm90+2700K55°
EM070-EF73SA01-15D20W500mA1723 lm90+2700K15°
EM070-EF73SA01-24D20W500mA1754 lm90+2700K24°
EM070-EF73SA01-38D20W500mA1685 lm90+2700K38°
EM070-EF73SA01-55D20W500mA1539 lm90+2700K55°
EM070-EF73SA01-15D25W600mA1906 lm90+2700K15°
EM070-EF73SA01-24D25W600mA1940 lm90+2700K24°
EM070-EF73SA01-38D25W600mA1864 lm90+2700K38°
EM070-EF73SA01-55D25W600mA1610 lm90+2700K55°
EM090-EF93SA01-15D30W700mA2255 lm90+2700K15°
EM090-EF93SA01-24D30W700mA2340 lm90+2700K24°
EM090-EF93SA01-38D30W700mA2106 lm90+2700K38°
EM090-EF93SA01-55D30W700mA2299 lm90+2700K55°
EM090-EF93SA01-15D35W850mA2698 lm90+2700K15°
EM090-EF93SA01-24D35W850mA2731 lm90+2700K24°
EM090-EF93SA01-38D35W850mA2520 lm90+2700K38°
EM090-EF93SA01-55D35W850mA2720 lm90+2700K55°



ImageDescriptionModel NO#Available for
Ella-HotelHoneycomb FilterEM050-HEM050

Ella-Hotel

Beam Soft LensEM050-LEM050
Ella-HotelHoneycomb FilterEM060-HEM060
Ella-HotelBeam Soft LensEM060-LEM060
Ella-HotelHoneycomb FilterEM070-HEM070
Ella-HotelBeam Soft LensEM070-LEM070
Ella-HotelHoneycomb FilterEM090-HEM090




Downloads

Model Power Picture Download
EM050 7W Ella COMMERCIAL 7W EM050 LED Module + Mounting Ring Download
Model Power Picture Download
EM050 7W Ella COMMERCIAL 7W EM050 LED Module + Mounting Ring Download
Model Power Picture Download
EM050 7W Ella COMMERCIAL 7W EM050 LED Module + Mounting Ring IESLDT
EM060 9W Ella COMMERCIAL 9W EM050 LED Module + Mounting Ring IESLDT
EM070 25W Ella COMMERCIAL 25W EM070 LED Module + Mounting Ring IESLDT
EM090 30W Ella COMMERCIAL 30W EM090 LED Module + Mounting Ring IESLDT
EM090 35W Ella COMMERCIAL35W EM090 LED Module + Mounting Ring IESLDT

How can we support you?

*Subscribe for new products & discount.

YES
NO

COMMENTS

More About The ELLA Family

As the latest generation of ENCORE downlight system, ELLA has not only kept the aesthetic design, precise light control and great UGR, but also has upgraded the versatility to a new level with the super modular design in a compact format. ELLA's LED module matches with numerous mounting rings within the system, offering a wide range of options particularly for hospitality, residential, and any indoor commercial setting. On top of mounting rings, ELLA also provides many possibilities in shape, round or square; adjustment, fixed or adjustable; size and wattages.
