Home / Products / Linear Light / ARC 2.75in Linear Light System

Overview Specs

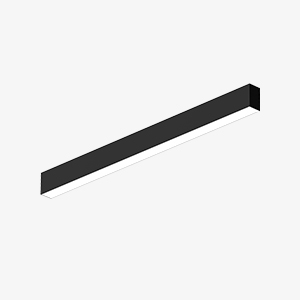

ARC 2.75in Linear Light System

Products Specification:

Installation: Surface, Recessed, Pendant, T-bar, Wall

Length: 2FT, 3FT, 4FT, 6FT, 8FT

Optics lens: PC Spotless Diffuser, Glo-lens, Asymmetric, Batwing

Lighting Types: Downlight, Up/Downlight

Power: 20W, 30W, 40W, 60W, 80W

CCT Selectable: 3000K-3500K-4000K

Line Drawing:

ARC 2.75in Linear Light System

General Features:

ARC 2.75" Linear Light System

Frame Color

ARC 2.75" Linear Light System

ARC 2.75" Linear Light

(20W-80W)

The series features unique dual-level control, allowing users to select from a diverse range of independently controllable direct and indirect light distributions, creating light both visually pleasing and comfortable. It fit multiple ceiling types, includes suspended, recessed, wall, surface. Available in lengths of 2', 3', 4', 6', 8', and continuous runs. Perfect for commercial open offices, private offices, conference rooms, corridors, educational facilities, and more.

ARC 2.75" Linear Light System

Optical Lens

Seamlessly integrate ARC linear with a variety of lens options to create a lighting solution tailored to your vision.

ARC 2.75" Linear Light System

CCT & Wattage Switch

Allows the end user to select between wattage and CCT (3000K, 3500K or 4000K) at the time of installation with a 3 position switch.

ARC 2.75" Linear Light System

Sensor Controls

Bluetooth mesh control for Smart Loop system for easy and prices adjustment.

ARC 2.75" Linear Light System

Create Any Shape As You Want

Wide range of link accessories L, X, T and Y shape for you to craft distinctive, personalized styles that perfectly complement your space.

Specs

Features
Specsheet
Accessories

-Sleek architectural design and quality.

-2.75" linear aperture.

-Available in 2', 3', 4', 6', 8' lengths for individual or continuous runs.

-High light efficacy 115-130lm/w.

-Multiple installation types including suspended, recessed, surface, and wall.

-CCT Switchable from 3000K, 3500K, 4000K.

-Up and down lighting with flexible intensity adjustment.

-Highly customizable with X, Y, T etc Joints.

-Integrated sensor system for smart control.

-Emergency battery backup available.

-Easy replacement and maintenance with removable accessories.

Order info.	Power	Efficacy(lm/W)	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
AR70S-D	20W	116	2285lm	80+	3000K	110°
AR70S-D	40W	116	4835lm	80+	3000K	110°
AR70S-B	30W	119	3859lm	80+	4000K	110°
AR70S-B	50W	114	5487lm	80+	3000K	110°
AR70P-B	25W	119	3056lm	80+	3000K	110°
AR70P-B	30W	116	3708lm	80+	3000K	110°
