CADIO Track Light 20W-30W

CADIO Track Light 20W-30W

Products Specification:

Application: Track-mounted

SDCM: ＜3

Beam Angle: 15°, 24°, 38°, 60°

Power: 20W, 25W, 30W

CCT: 2700K, 3000K, 4000K, 5000K

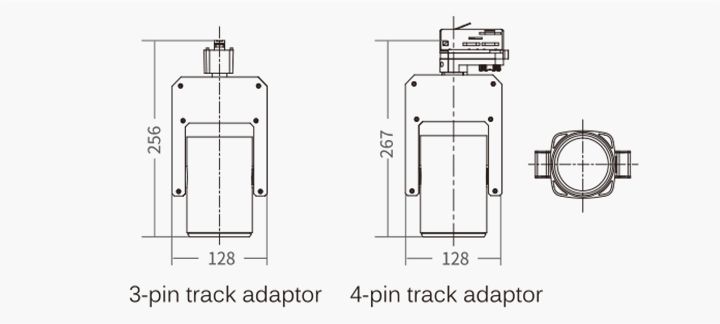

Line Drawing:

CADIO Track Light 20W-30W

General Features:

OVEGA-Narrow Beam 10W

Accessories

OVEGA-Premium Small LED Track Light 10W-15W

Frame Color


CADIO Track Light

(20W, 30W)

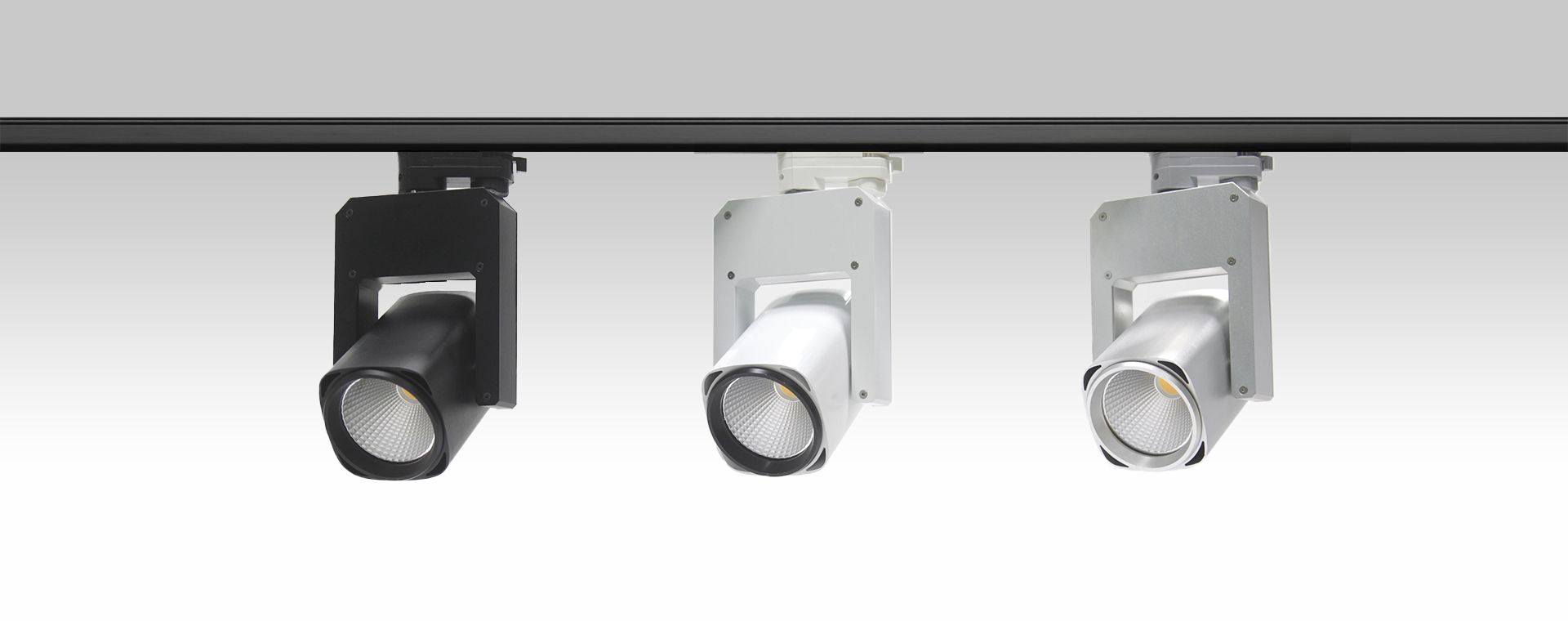

CADIO is designed for lighting with difference, and is especially suitable for commercial, gallery and exhibition lighting. CADIO continues with the industrial chic style, and adds more untamed nature to it. CADIO’s separate driver compartment assures users excellent heat dissipation and multiple dimming such as Triac and 1-10V because of enough space for driver of different kinds. CADIO provides interchangeable beam reflectors with no tools needed at all.





 AIMER Track Light 25-35W



Great Light Quality

Available in 15°, 24° , 38° and 60° beam angles, AIMER  allows enough flexibility from narrow beam to flood light. AIMER’s light effect remains even and smooth for every beam angle with high light efficiency >100lm/w.


 CADIO Track Light 20W-30W

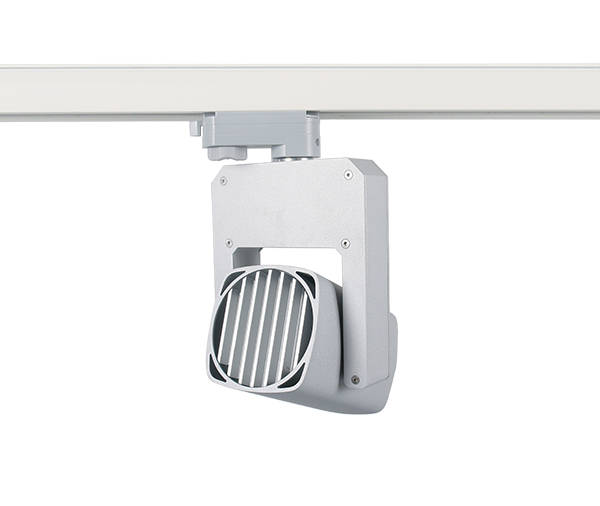

Anti-glare Accessory

Honeycomb is available for better eye comfort. The push-lock structure saves the trouble of using tools, making life not only more comfortable but also easier.


 CADIO Track Light 20W-30W

Solid Practicality & Distinctive Appearance

The luminaire head swivels 180° and the whole luminaire swivels 355°, projecting light in almost all directions.


 CADIO Track Light 20W-30W

Satisfying Heat Dissipation

The combination of Al6063 and separate heat sink design brings out the best heat dissipation performance in CADIO, making sure it reaches up to 30W. The lifespan of the luminaire is also maximized because of the separation of driver and COB heat sink. CADIO has been one of the classic LED track lights of ENCORE since its Rolling out with the record of zero customer complaint for 8 years in a row.

Specs

-Compact design with integrated driver.


-Light efficiency is up to 95lm/W.


-Interchangeable reflector: 15°, 24°, 38°, 60°.


-Privately-designed joint can hold the track head at any positions without malfunctions..


-Rotating solution: 355° in horizontal, 90° in vertical.


Order info.PowerLed CurrentLuminous
Flux(lm)		CRICCTBeam Angle
(°）
EN-TLC020-01-830N015B20W520mA1974lm80+3000K15°
EN-TLC020-01-830N015B20W520mA2077lm80+4000K15°
EN-TLC020-01-830N024B20W520mA1980lm80+3000K24°
EN-TLC020-01-830N024B20W520mA2084lm80+4000K24°
EN-TLC020-01-830N038B20W520mA1974lm80+3000K38°
EN-TLC020-01-830N038B20W520mA2078lm80+4000K38°
EN-TLC020-01-830N060B20W520mA1981lm80+3000K60°
EN-TLC020-01-830N060B20W520mA2085lm80+4000K60°
EN-TLC030-01-830N015B30W700mA2643lm80+3000K15°
EN-TLC030-01-830N015B30W700mA2782lm80+4000K15°
EN-TLC030-01-830N024B30W700mA2640lm80+3000K24°
EN-TLC030-01-830N024B30W700mA2779lm80+4000K24°
EN-TLC030-01-830N038B30W700mA2632lm80+3000K38°
EN-TLC030-01-830N038B30W700mA2770lm80+4000K38°
EN-TLC030-01-830N060B30W700mA2605lm80+3000K60°
EN-TLC030-01-830N060B30W700mA2742lm80+4000K60°



None

Downloads

Model Power Picture Download
TLC020-01 20W Cadio 20W Download
Model Power Picture Download
TLC025-01 25W Cadio 25W Download
Model Power Picture Download
TLC030-01 30W Cadio 30W IESLDT
