FLEX-Zoomable 20W-25W

Products Specification:

Application: Track-mounted, Surface-mounted

SDCM: ＜3

Beam Angle: 25°-60°

Power: 20W, 25W

CCT: 2700K, 3000K, 4000K, 5000K

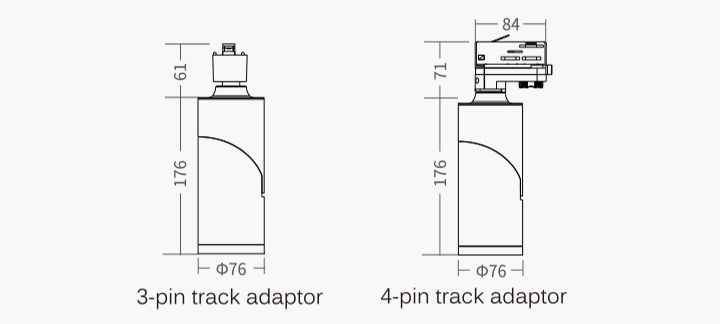

Line Drawing:

FLEX-Zoomable 20W-25W

General Features:

IMAX-Zoomable 10W-15W

OVEGA-Narrow Beam 10W

Frame Color

FLEX-Zoomable

(20W 25W)

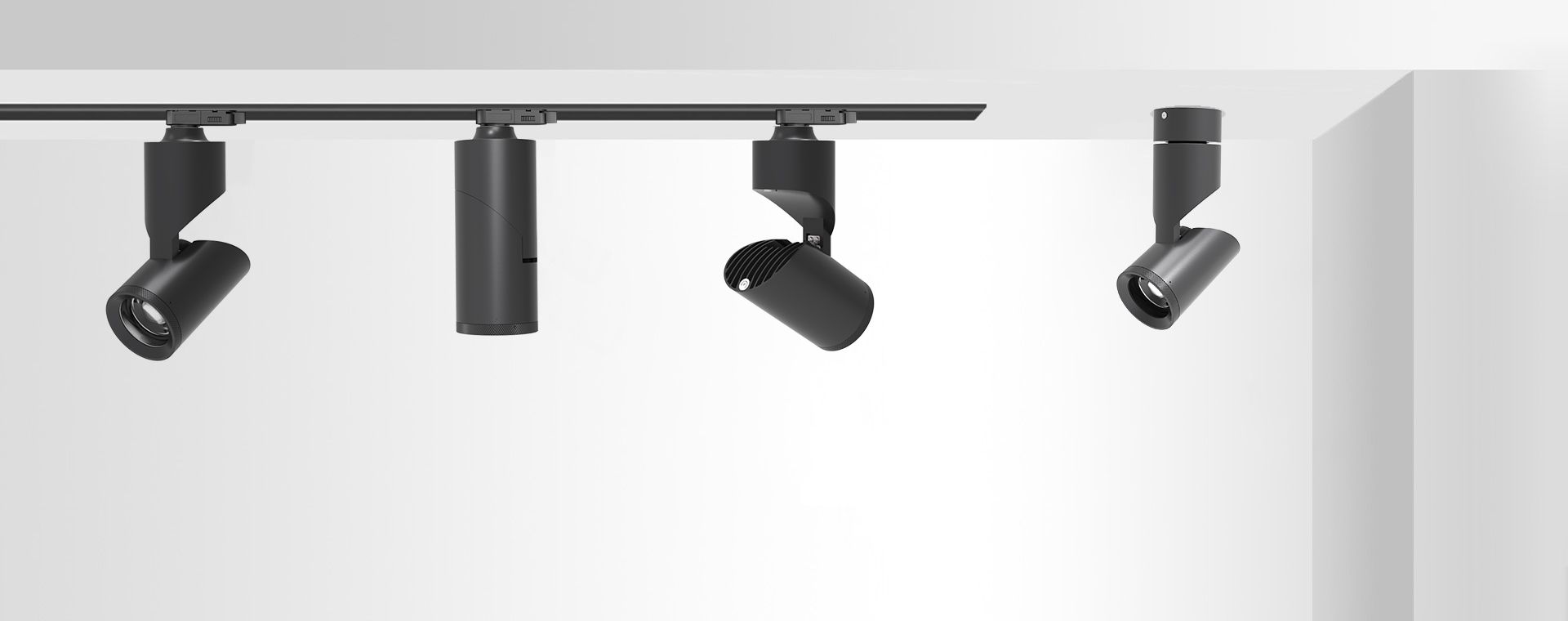

FLEX-Zoomable is a stylish and slim foldable cylinder LED track light that fits perfectly into any retail, museum and gallery setting. Its adjustable beam mechanism is designed to provide endless beam options from 25° narrow to 60°wide flood distribution. The luminaire head swivels precisely horizontal 355°and vertical 90° without dead angle. The light, as a result, is emitted exactly where you need it. The integrated driver gives clean feeling and avoids a cluttered ceiling caused by drivers pointing in different directions. Both on-track and surface-mounted installation are supported.

FLEX-Zoomable 20W-25W

Capable Zooming Performance

FLEX Zoomable LED track light offers a wide angle adjusting range from 25°to 60°for various lighting effects such as accent lighting and flood lighting. It manages to realize ±5% accurate beam control. Moreover, the light quality remains outstanding at any angle when zooming.

FLEX-Zoomable 20W-25W

Many Possibilities, Better Flexibility

The front beam angle adjusting lens enhances its flexibility by allowing angle adjustment from 25°to 60°for endless angle options. More than that, the lattice texture of the adjusting ring adds to the pleasing experience of adjusting.

FLEX-Standard 20W-25W

Magic Magnet

The magic magnet, tiny as it is, secures the two foldable parts together as one perfect seamless cylinder track light when needed, and glows like a delicate diamond when unfolded, adding to the already charming glamour of FLEX.

FLEX-Standard 20W-30W

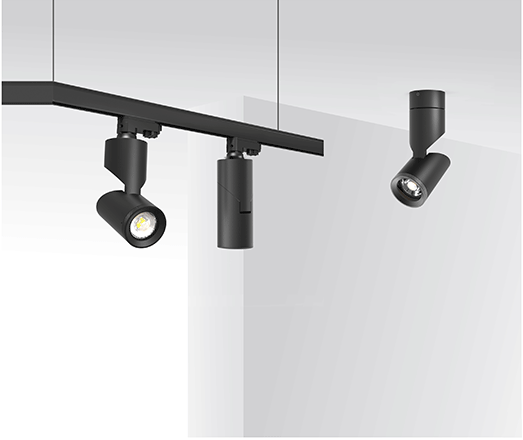

Different Installation Methods

FLEX track light family supports both on-track and surface-mounted installation, and surface-mounted FLEX obviously catches attention for its above-average flexibility: the whole luminaire swivels 355° horizontally just like when it’s on track, and the foldable part swivels 90° vertically, projecting the light in all directions. Therefore, FLEX is the right luminaire of many possibilities for the same space with different requirements.

Modehaus Laschober Store, Austria

Modehaus Laschober Store, Austria

Specs

Features
Specsheet
Accessories

-A sleek & elegant cylinder in foldable design,concise but not simple.

-By simply rotating the front ring, the beam angle can be adjusted from 25° to 60°.

-Privately-designed joints can hold the lights at any positions without malfunctions.

-Smart magnet can make fixture base and driver box seamless connested.

-360°+ rotation without dead angle and 90°vertical aiming.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
EN-TLF020-11-830N025B	20W	520mA	2021lm	80+	3000K	25°
EN-TLF020-11-840N025B	20W	520mA	2084lm	80+	4000K	25°
EN-TLF020-11-830N060B	20W	520mA	2064lm	80+	3000K	60°
EN-TLF020-11-840N060B	20W	520mA	2148lm	80+	4000K	60°
EN-TLF020-11-830N025B	25W	600mA	2168lm	80+	3000K	25°
EN-TLF020-11-840N025B	25W	600mA	2235lm	80+	4000K	25°
EN-TLF020-11-830N060B	25W	600mA	2311lm	80+	3000K	60°
EN-TLF020-11-840N060B	25W	600mA	2382lm	80+	4000K	60°

None

Downloads

Datesheet
Installation Manual
LDT/IES File

Model	Power	Picture	Download
TLF020-01	20W		Download

Model	Power	Picture	Download
TLF020-01	20W		Download

Model	Power	Picture	Download
TLF020-01	20W		IES LDT
TLF025-01	25W		IES LDT

How can we support you?

More About The FLEX Family

Embrace many possibilities with FLEX family. Each of FLEX products is a realization of nice flexibility in a distinctive magnetic break-join structure design. Different versions of FLEX offer such different lighting solutions as fixed beam angles realized with interchangeable lens, and adjustable beam angle from 25°to 60°realized with adjustment structure, providing accent lighting, spot lighting, and flood lighting. Except for versatile lighting solutions, FLEX is also a system with different installation methods(on-track and surface-mounting). Therefore, for environments asking for different lighting solutions & installation methods, FLEX family will be a good choice with more possibilities in the unified impression.
