High Efficiency led track lights

OVEGA-Premium LED Track Light 20W-30W

Products Specification:

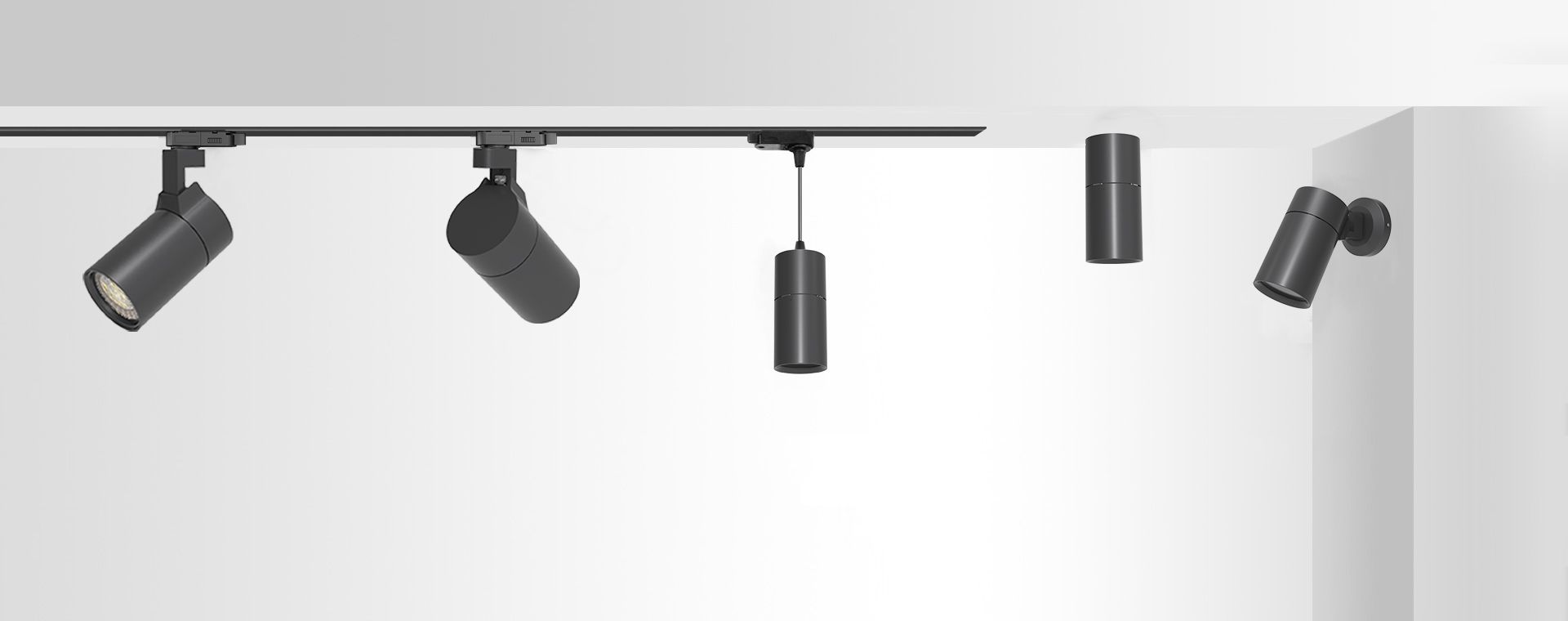

Application: Track-mounted, Surface-mounted, Wall-mounted, Pendant

SDCM: ＜3

Beam Angle: 15°, 18°, 24°, 38°, 60°

Power: 20W, 25W, 30W

CCT: 2700K, 3000K, 4000K, 5000K

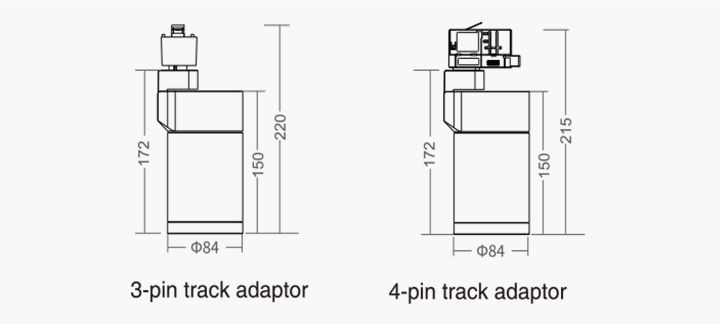

Line Drawing:

OVEGA-Premium LED Track Light 20W-30W

General Features:

OVEGA-Narrow Beam 10W

Accessories

OVEGA-Premium Small LED Track Light 10W-15W

Frame Color

OVEGA-Standard 20-30W

Premium Light Efficiency & Quality

What makes Premium premium?

Premium light efficiency. OVEGA Premium uses brand COB for a better performance with light efficiency up to 110lm/w. It’s cost-cutting, energy-saving, and experience-enhancing.

Premium light quality. The even light distribution and silky light effect remain unchanged when adjusting beam angle.

OVEGA-Premium 20W-30W

Premium Accessory Package

Premium offers 6 such different anti-glare accessory options as honeycomb, cross louve, eye snoot, snoot, wall wash ring, and barn door. Tastes differ, but Premium always has one more choice for you.

Also, every one of them allows tool-free twist-on-off installation. Your dexterous hands are good enough.

OVEGA-Premium Small 10W-15W

ENCORE Private LED Holder

What does ENCORE Private LED holder have to offer:

Perfect size & shape matching with CITIZEN, CREE, LUMINUS, PHILIPS COB LED;

User-friendly & positioning-free lens replacement;

Total 2% lumen increase by the smooth PC surface.

OVEGA-Standard 20-30W

2-Step Zero-Tool Lens Replacement

ENCORE knows well that our customers are long bothered by lens changes due to order mistake or component malfunction happened to average luminaire. Therefore, we are here with solution-ENCORE private LED holder.

No matter you've accidentally placed the wrong angle order or want to see the effect of more angles without wasting too much money on unnecessary samples, or you're preparing stock for the upcoming busy sales season, the LED holder will have these issues all taken care of.

OVEGA-Premium Small 10W-15W

Capable Modular Design

As the forerunner of track lighting system in China, OVEGA has well realized the modular design concept in each OVEGA product with 4 interchangeable installation bases. No matter which is your favorite, we make it possible all in the same system with the same unified design.

Imagine all the time, energy, and money saved from the exhausting hunting for "the one".

-Stylish and compact design with integrated driver.

-Excellent modular combination concept: integrated driver + different fixture bases + optical accessories, DIY to get different light solutions and easy for maintenance.

-Light efficiency is up to 110lm/W.

-Interchangeable lens: 15°, 18°, 24°, 38°,60°.

-Can be dressed in 6 kinds of optical accessories to enhance the visual quality, reduce glare and cut off the light.

-Privately-designed joints can hold the track head at any positions without malfunctions.

-360°+ rotation without dead angle and 90°vertical aiming.

-Use OVEGA family to get a unified impression in one environment.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
EN-TLO020-21-830N015W	20W	520mA	2417lm	80+	3000K	15°
EN-TLO020-21-830N018W	20W	520mA	2391lm	80+	3000K	18°
EN-TLO020-21-830N024W	20W	520mA	2371lm	80+	3000K	24°
EN-TLO020-21-830N038W	20W	520mA	2522lm	80+	3000K	38°
EN-TLO020-21-830N060W	20W	520mA	2301lm	80+	3000K	60°
EN-TLO025-21-830N015W	25W	600mA	2747lm	80+	3000K	15°
EN-TLO025-21-830N018W	25W	600mA	2748lm	80+	3000K	18°
EN-TLO025-21-830N024W	25W	600mA	2796lm	80+	3000K	24°
EN-TLO025-21-830N038W	25W	600mA	2884lm	80+	3000K	38°
EN-TLO025-21-830N060W	25W	600mA	2772lm	80+	3000K	60°
EN-TLO030-21-830N015W	30W	730mA	3137lm	80+	3000K	15°
EN-TLO030-21-830N018W	30W	730mA	3118lm	80+	3000K	18°
EN-TLO030-21-830N024W	30W	730mA	3079lm	80+	3000K	24°
EN-TLO030-21-830N038W	30W	730mA	3226lm	80+	3000K	38°
EN-TLO030-21-830N060W	30W	730mA	3246lm	80+	3000K	60°

Image	Description	Model NO#	Available for
	Honeycomb Filter	EN-TLO-AC01	OVEGA-Premium 20W/25W/30W
	Cross Louver	EN-TLO-AC02	OVEGA-Premium 20W/25W/30W
	Eye Snoot	EN-TLO-AC03	OVEGA-Premium 20W/25W/30W
	Snoot	EN-TLO-AC04	OVEGA-Premium 20W/25W/30W
	Wall Wash Ring	EN-TLO-AC05	OVEGA-Premium 20W/25W/30W
	Barn Door	EN-TLO-AC06	OVEGA-Premium 20W/25W/30W

Datesheet
Installation Manual
LDT/IES File

Model	Power	Picture	Download
TLO030-21	30W		Download

Model	Power	Picture	Download
TLO030-21	30W		Download

Model	Power	Picture	Download
TLO020-21	20W		IES LDT
TLO025-21	25W		IES LDT
TLO030-21	30W		IES LDT

*Subscribe for new products & discount.

YES

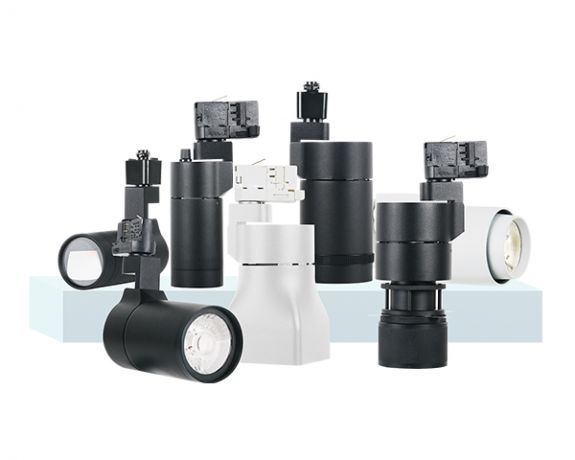

More About The OVEGA Family

Embrace UNLIMITED POSSIBILITIES with OVEGA family. Each of the 7 versions of OVEGA products is a realization of excellent modular concept blended in the unified appearance. But each one of them also stands out with different lighting solutions, empowering OVEGA family to fit perfectly into any retail, museum and gallery setting.
